Side Entry Agitators
Side Entry Agitators

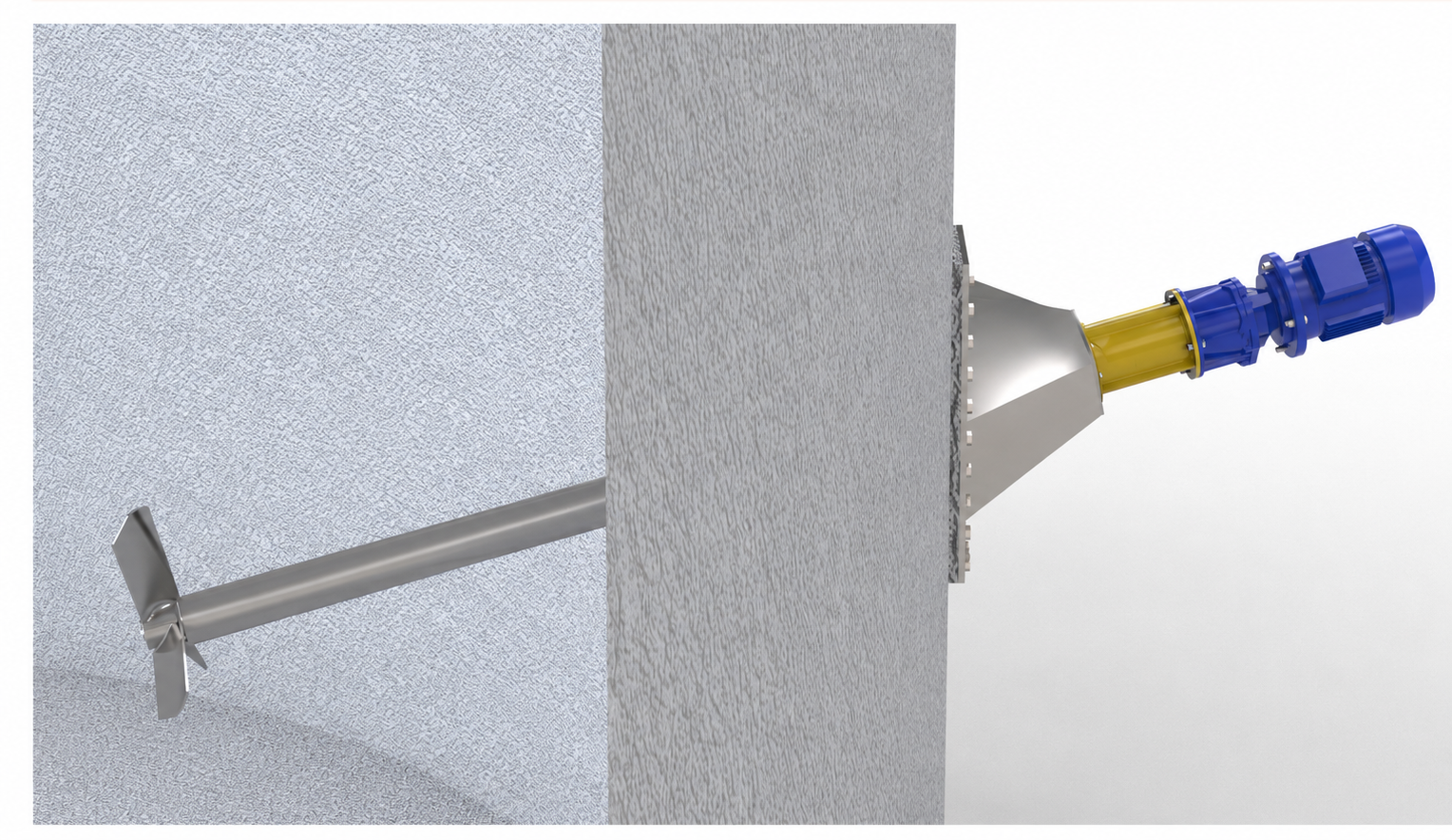

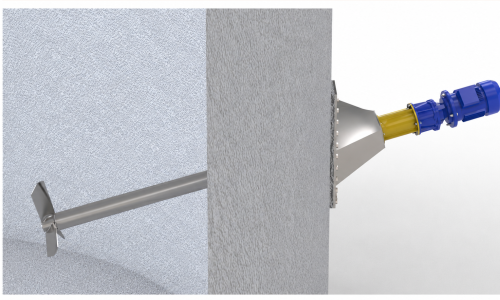

Side Entry Agitator is designed to provide efficient mixing and circulation in large industrial tanks and process vessels. It ensures uniform blending of liquids and slurry while improving process efficiency across applications such as biogas plants, wastewater treatment, and chemical processing.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Application | For stirring viscous feedstocks such as slurry, manure and renewable raw materials with Dry matter content up to 12–15% in Bio-Gas Plant for Hydrolysis–Digester | Tank diameter | 15–30 m |
| Impeller | 3 Bladed high efficiency Hydrofoil | Motor Rating | 7.5 kW to 22 kW |
| Shaft Sealing | Mechanical seal SiC/SiC | Speed of Rotation | Up to 300 RPM |
| Shaft Support | External Pipe with Interim bearing & Sealing Arrangement | Shaft Length | Up to 4.5 m |
| Outside bearing | Tapered roller bearings | Tank openings | ~ 1000 mm |
| Installation Angle | Horizontal tilt – 15 to 30°Vertical tilt – 5 to 10° | Gearbox | Helical / planetary gearbox |
| Compliance Standards | CE, ATEX/IECEx, PESO certifications for Motor | Material | SS304 / SS316 |
